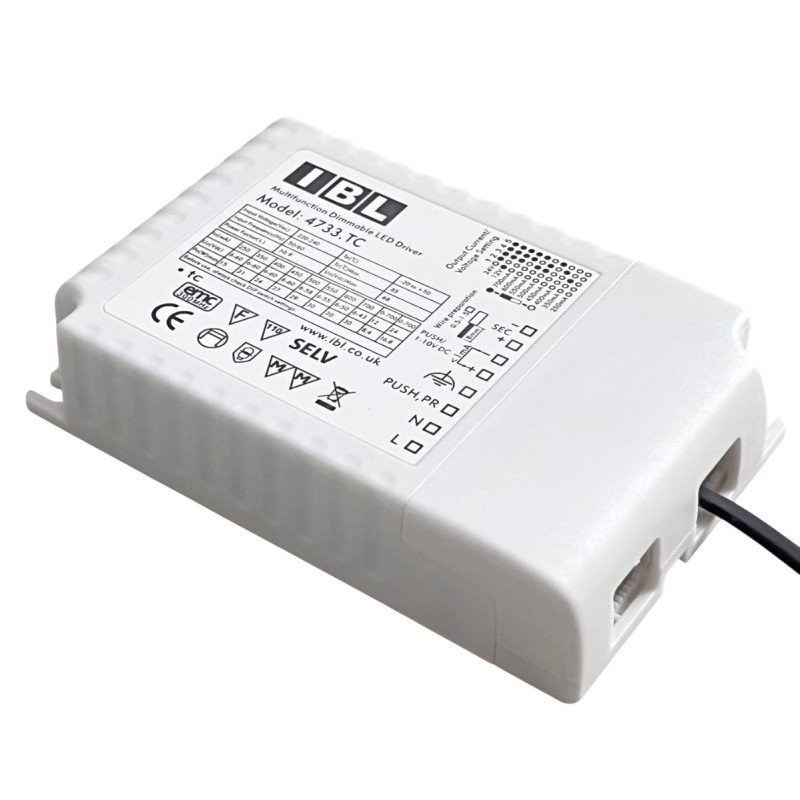

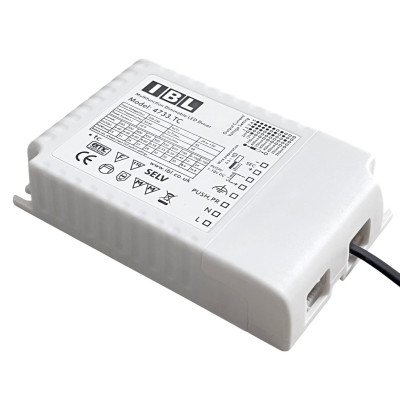

IBL 4733.TC Multifunction Dimmable LED Driver

AED50.00
No tax
4733.TC
Quantity
Add to wishlist

  Secure payment

By Stripe

  Free Shipping

On orders above AED 200

  Estimated Delivery

Dispatched within 24 hours

Guaranteed safe & secure checkout

       Product Specifications:

         IBL 4733.TC Multifunction Dimmable LED Driver

  • Model: 4733.TC
  • Input Voltage (Vac): 220-240
  • Input Frequency (Hz): 50/60
  • Power Factor (λ): 0.9
  • Ta (°C): -20 to +50
  • Tc (°C) Max.: 85
  • Uo (Vdc) Max.: 68
  • Io(mA) / Uo(Vdc) / Po(W)max: 250mA / 6-60Vdc / 15W, 350mA / 6-60Vdc / 21W, 400mA / 6-60Vdc / 24W, 450mA / 6-60Vdc / 27W, 500mA / 6-58Vdc / 29W, 550mA / 6-55Vdc / 30W, 600mA / 6-50Vdc / 30W, 700mA / 6-43Vdc / 30W, 0-700mA / 12Vdc / 8.4W, 0-700mA / 24Vdc / 16.8W
  • Material: Plastic
  • Before Use, Always Check DIP Switch Settings.
  • Dimensions: (L)108mm x (W)72mm x (H)27mm
