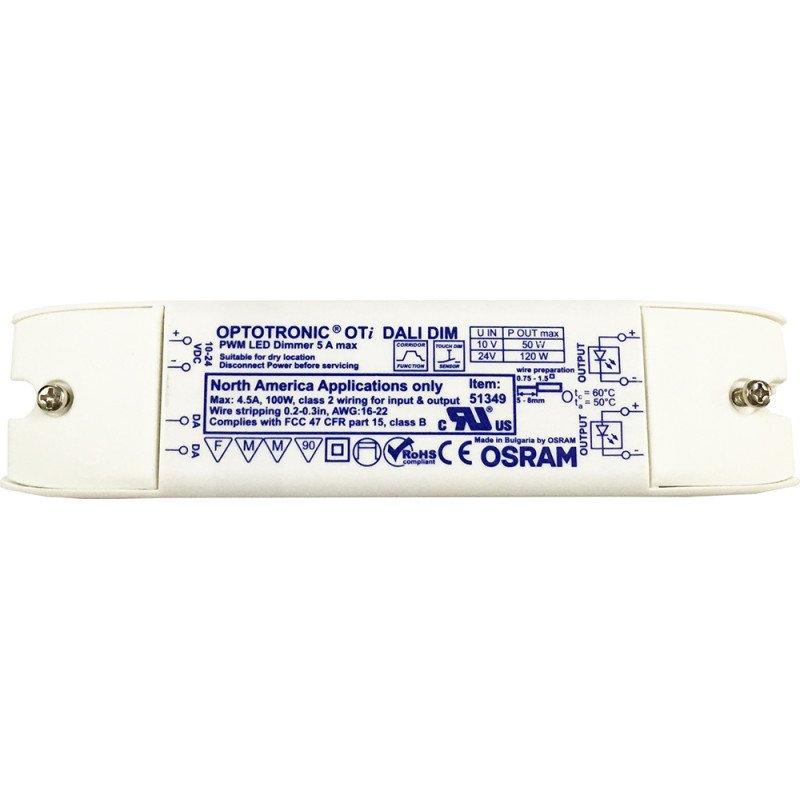

OSRAM OPTOTRONIC OTI DALI DIMMER 10V-24V

       PRODUCT SPECIFICATIONS:

         OSRAM OPTOTRONIC OTI DALI DIMMER 10V-24V

• Maximum Output Current: 5A
• Cable clamp housing for independent mounting
• Dimming range: 0.1 – 100 %
• Reversible protection mechanisms for short-circuits, over temperature and -loads
• 10V Maximum 50W
• 24V Maximum 120W
• Dimmable
• Material: Plastic
• Color: White
• Dimension (L*W*H): 170*42*20mm
• IP Rating IP20 – Protection against fingers or other object not greater than 80mm in length and 12mm in diameter. No special protection against the harmful entry of various forms of moisture (e.g. dripping, spraying, submersion, etc.)
• The Optotronic Oti Dali Dim is a intelligent electronic constant-voltage 1-channel DALI dimmer. Integrated Touch DIM functionality enables dimming/switching via standard switches.  Please note: A power supply is required for this product. When using a 12V power supply the maximum load is 50W. When using a 24V power supply the maximum load is 120W.
