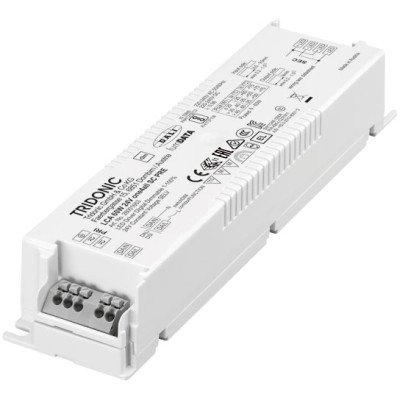

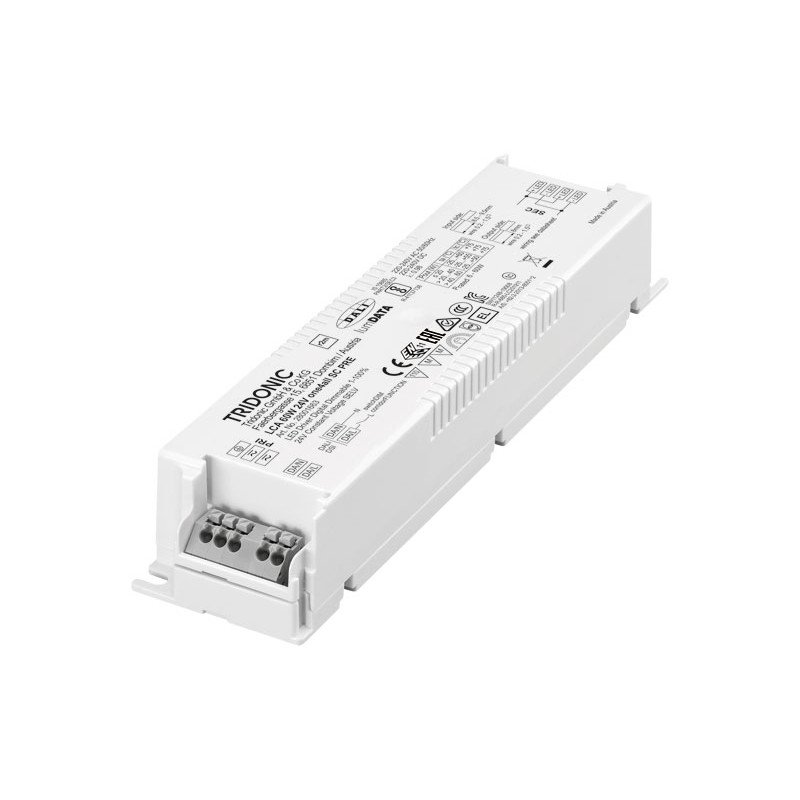

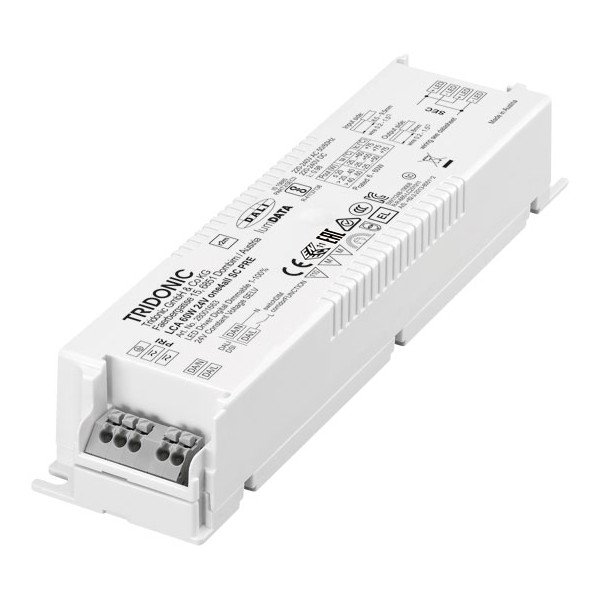

TRIDONIC DRIVER LCA 60W 24V ONE4ALL SC PRE IP20

       PRODUCT SPECIFICATIONS:

         TRIDONIC DRIVER LCA 60W 24V ONE4ALL SC PRE PREMIUM SERIES 24V IP20

• Model No.: LCA 60W 24V one4all SC PRE
• Rated Supply Voltage: 220-240V
• AC Voltage Range: 220-240V
• DC Voltage Range: 220-240V
• Mains Frequency: 50/60Hz
• Overvoltage Protection: 320VAC, 48h
• Typ. Rated Current (at 230V, 50Hz, Full Load): 295mA
• Typ. Current: (220 V, 0 Hz, full load, 15 % dimming level): 59mA
• Leakage current (at 230 V, 50 Hz, full load): < 0.32 mA
• Typ. input current in no-load operation: 35.8 mA
• In-rush current (peak / duration): 32.2 A / 187 µs
• Max. input power: 67W
• Typ. power consumption on stand-by: <0.2W
• Typ. input power in no-load operation: 2.05 W
• Typ. efficiency (at 230 V, 50 Hz, full load): 93%
• λ (at 230 V, 50 Hz, full load): 0.98
• THD (at 230 V, 50 Hz, full load): <5.3%
• Starting time (at 230 V, 50 Hz, full load): <0.6s
• Starting time (DC mode): <0.3s
• Switchover time (AC/DC): 0.3s
• Turn off time (at 230 V, 50 Hz, full load): <0.003s
• Output voltage tolerance: ± 1 V
• Output LF voltage ripple (< 120 Hz): ± 5 %
• Output P_ST_LM (at full load): ≤ 1
• Max. output voltage (U-OUT): 60V
• Dimming range: 1-100%
• PWM frequency: ~ 1000 Hz
• Mains surge capability (between L - N): 1KV
• Mains surge capability (between L/N - PE): 2KV
• Type of protection: IP20
• Dimension (L*W*H): 180*43*30mm
• NEW: lumDATA (Luminaire data, Energy reporting and Diagnostics & Maintenance)
• Dimmable 24 V constant voltage LED driver for flexible constant voltage strips
• Can be either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards)
• The strain relief is included in both packaging variants. In the single packaging (SP) each Driver has also an individual packaging
• One4all interface and ready2mains enable different dimming options
• Dimming range 1 to 100 %
• No additional external dimmer is needed
• Suitable for emergency escape lighting systems acc. to EN 50172
• Nominal lifetime up to 50,000 h
