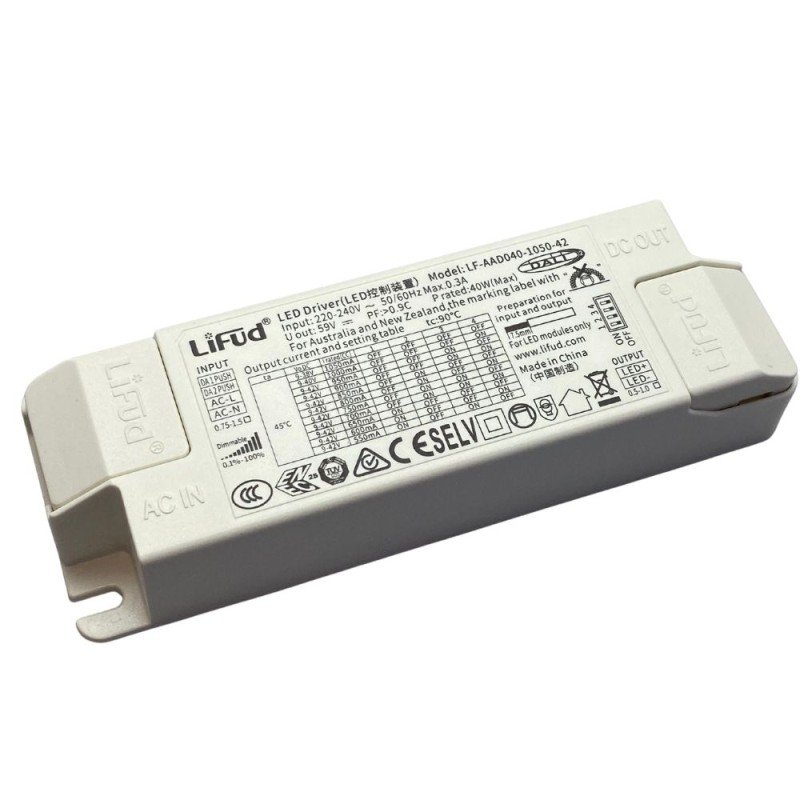

LIFUD MULTI OUTPUT CONSTANT CURRENT DRIVER 40W DALI-2 550-1050mA

       PRODUCT SPECIFICATIONS:

         LIFUD MULTI OUTPUT CONSTANT CURRENT DRIVER 40W DALI-2 550-1050mA

           DESCRIPTION:

• LF-AAD040-1050-42 is a 40W constant current LED driver. It has DALI-2 dimming and push dimming functions. Its rated input voltage limit is 198-264Vac. The output current can be adjusted via the DIP switch from 550mA to 1050mA (550mA, 600mA, 650mA, 700mA, 750mA, 800mA, 850mA, 900mA, 950mA, 1000mA, 1050mA), in steps of 50mA.

          Features:

• IP20
• Suitable for Class II light fixtures
• Constant current output. The output current can be adjusted via the DIP switch
• Built-in active PFC function
• Standby power consumption: ≤0.5W
• Dimming depth: 0.1%
• DALI-2 dimming function. The logarithmic dimming curve or the linear dimming curve can be selected via the software
• Push dimming function.
• 5-year warranty (Please refer to the warranty condition.)

           Applications:

• Indoor office lighting
• Decorative lighting
• Commercial lighting
• Residential lighting
• Plant lighting.

           SPECIFICATIONS:

         LF-AAD040 Data Sheet
