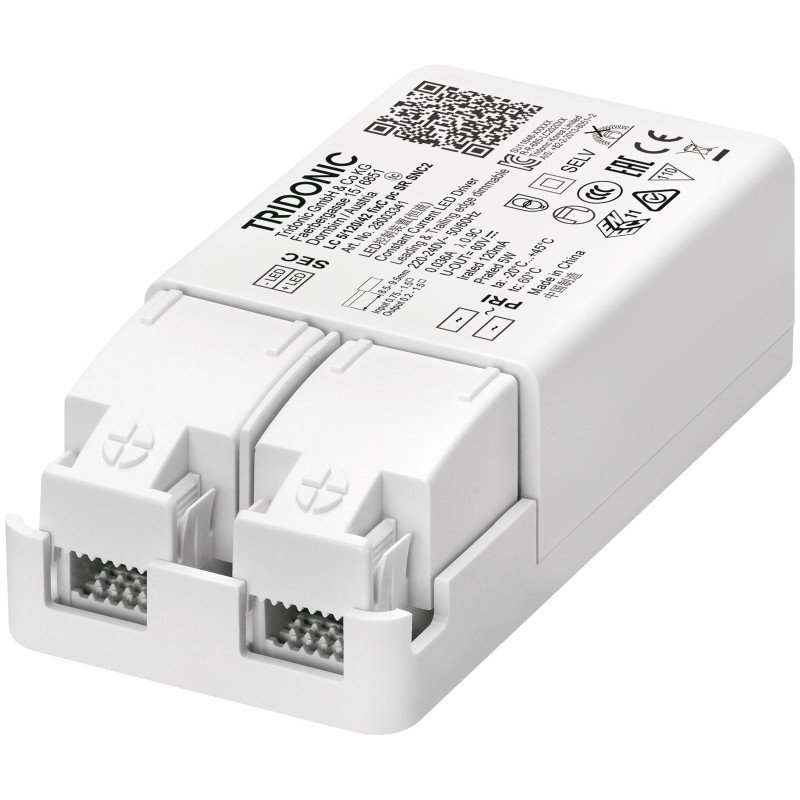

Tridonic Constant Current LED Driver LC 5/120/42 fixC pc SR SNC2

       PRODUCT SPECIFICATIONS:

         Tridonic Constant Current LED Driver LC 5/120/42 fixC pc SR SNC2

• Type: LC 5/120/42 fixC pc SR SNC2
• Article No.: 28003341
• Output Current: 120mA
• Typ. Rated Current (at 230V, 50Hz, Full Load): 36mA
• Min. Forward Voltage: 27V
• Max. Forward Voltage: 42V
• Max. Output Voltage (U-Out): 60V
• Max. Output Power: 5W
• Output Power Range: 3.2W-5W
• Typ. Power Consumption (at 230V, 50Hz, Full Load): 7.2W
• Efficiency at Min. Load: 70%
• Efficiency at Full Load: 72%
• λ at Full Load: 0.9C
• λ Over Full Operating Range (min.): 0.8C
• Output Current Tolerance (at 230V, 50Hz, min. Load): ±7.5%
• Output Current Tolerance (at 230V, 50Hz, full Load): ±7.5%
• Max Peak Output Current: 133mA
• Ambient Temperature Ta (at Lifetime 50,000H): 35°C
• Ambient Temperature Ta: -20 - +45°C
• Max. Casing Temperature Tc: 60°C
• Lifetime: up to 50000Hours
• Dimensions (L x W x H): 101.5x49x29mm

       Data Sheet
