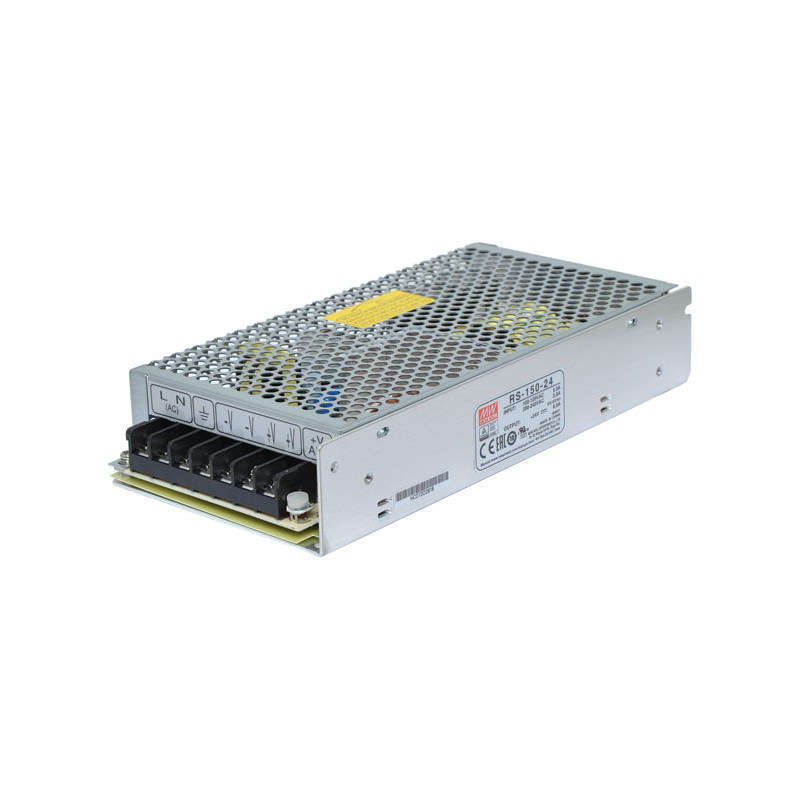

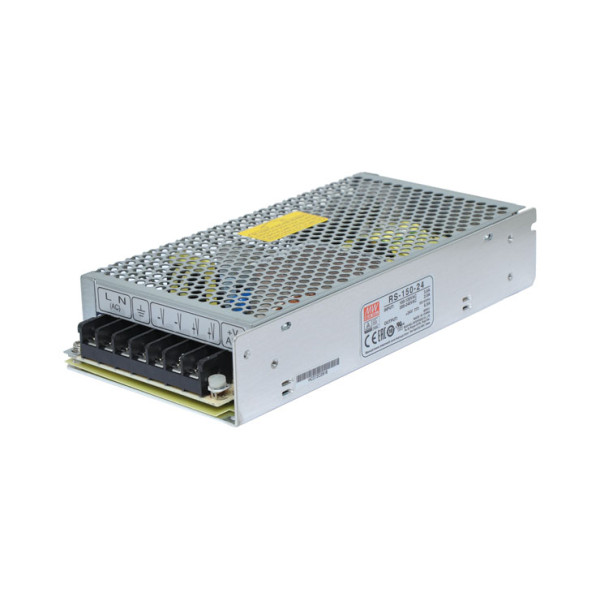

Siddiqui Trading FZCO Mean Well RS-150-24 DC24V-150W LED Driver

       Product Specifications:

         Mean Well RS-150-24 DC24V-150W Single Output Switching Power Supply

• Model: RS-150-24

         OUTPUT

• DC Voltage: 24V
• Rated Current: 6.5A
• Current Range: 0 ~ 6.5A
• Rated Power: 156W
• Ripple & Noise: 120mVp-p
• Voltage ADJ. Range: 22.8 ~ 26.4V
• Voltage Tolerance: ±1.0%
• Line Regulation: ±0.5%
• Load Regulation: ±0.5%
• Setup, Rise Time: 800ms, 20ms/230VAC     1200ms, 30ms/115VAC at Full Load
• Hold Up Time: 28ms/230VAC     20ms/115VAC at Full Load

         INPUT

• Voltage Range: 88 ~ 132VAC / 176 ~ 264VAC Selected by Switch     243 ~ 373VDC (withstand 300VAC surge for 5sec. without damage)
• Frequency Range: 47 ~ 63Hz
• Efficiency: 86%
• AC Current: 3A/115VAC     3A/230VAC
• Inrush Current: Cold Start 40A/230VAC
• Leakage Current: <2mA/240VAC

         DIMENSION

• 199*98*38mm (L*W*H)

          Mean Well RS-150-24 Datasheet
