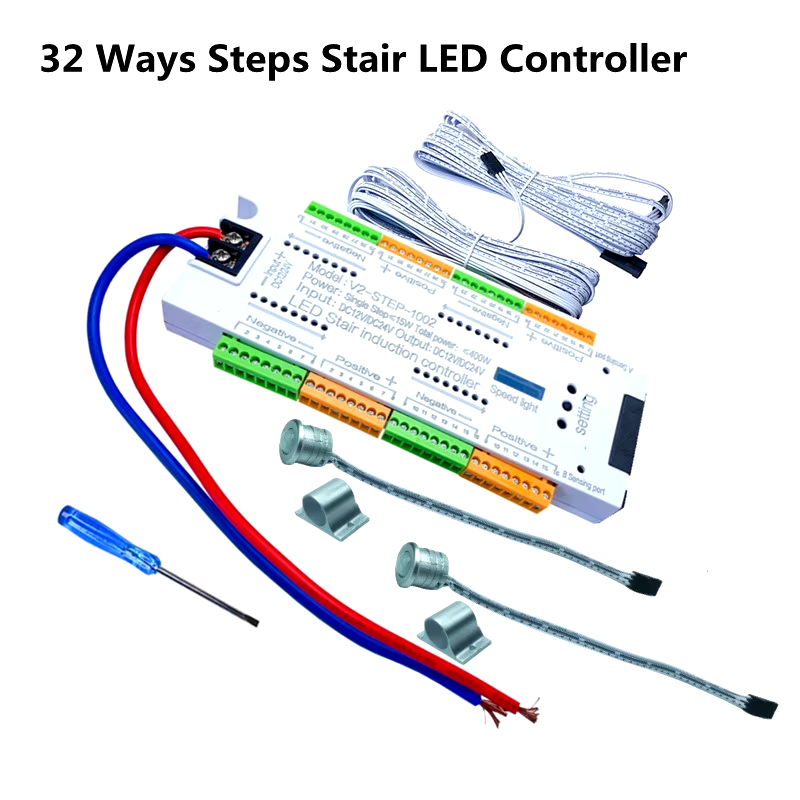

V2-STEP-1002 32 Ways Steps Stair LED Controller

       Product Specifications:

         V2-STEP-1002 32 Ways Steps Stair LED Controller

• PIR Motion Sensor Stair Controller DC12V 24V <500W V2-STEP-1002 32-Channels
• Staircase Controller for 2835 3528 5050 LED Strip
• Stair Light Controller with Sensors
• Product Model: V2-STEP-1002 DC12V/24V
• Input/Output Voltage: DC 12V/24V
• Output Power: <500W
• Channel: 32 (Set to 1-32 Step)
• Sensor: 2 PIR Sensor (A&B)
• Product Size: 185*78*25mm
• Press the key quickly to adjust the speed of the light strip. There are four gears (60 seconds, 45 seconds, 30 seconds, 15 seconds)
• Press and hold the key for 5-6 seconds to enter the step setting mode. *Long press the switch once to set the first step stairs, *Short press the switch a second time to set the second step stairs, *Short press the third time to set the third step stairs, and so on.
• After the operation is completed, press and hold again for 5-6 seconds to automatically save the corresponding settings.
• A/B sensors need to be installed at the entrance and exit of the stairs and face the human body.
• The product is low voltage 12V-24V, need to connect transformer. Do not directly connect 220V, it will burn the controller.
• The product is not waterproof.
• Important note: The positive and negative terminals of the power supply input of the controller cannot be reversed, the red wire V+ is connected to the positive electrode of the switching power supply, and the blue (or black wire) V- is connected to the negative electrode of the switching power supply.
