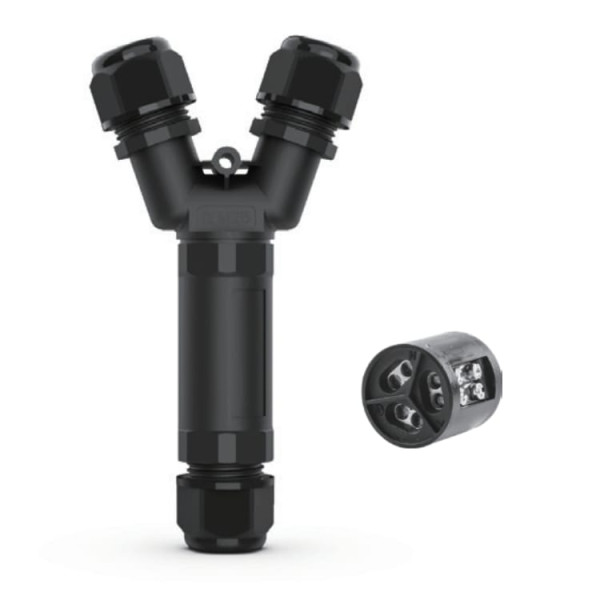

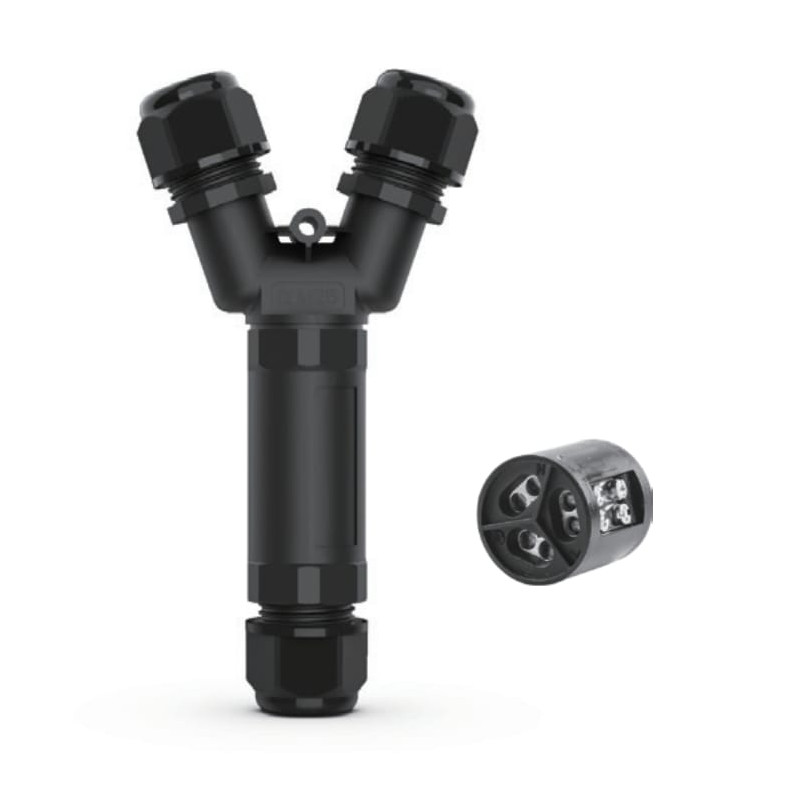

EW-M25Y 3-WAY IP68 WATERPROOF CONNECTOR 3-PIN Y TYPE

       PRODUCT SPECIFICATIONS:

         EW-M25Y 3-WAY IP68 WATERPROOF CONNECTOR 3-PIN Y TYPE

• Number of Poles: 3Pins
• Wiring Type: Screw
• Voltage: 450V
• Electric Current: 32A (3Pins)
• Wire Section: 0.5-4mm² (3Pins)
• Outer Cable Diameter: 5-9mm, 9-12mm

• Plastic Material: PA66
• Contact Material: Copper Alloy
• Temperature Range: -40°C ~ +105°C
• IP Level: IP68
• PA Nylon Raw Material, Waterproof Flame Retardant, Temperature Pressure Resistance
• Size: Ø30mmx83mmx155mm
• It is Widely Used in Various Electrical Circuits or Plays the Role of Connecting or Disconnecting Circuits
• It can protect electronic components that are powered on at a water depth of 4 meters. Connect 0.5-4.0mm² solid, stranded, and fine-stranded conductors. Screw Wiring
• The IP68-rated M25Y screw y-type connector handles 0.5-4mm² wire sizes and 32A loads at 450V. With a robust, waterproof build and multiple pins (3-pins) for wiring options, this versatile y-shaped connector is suited for demanding outdoor power connections.
