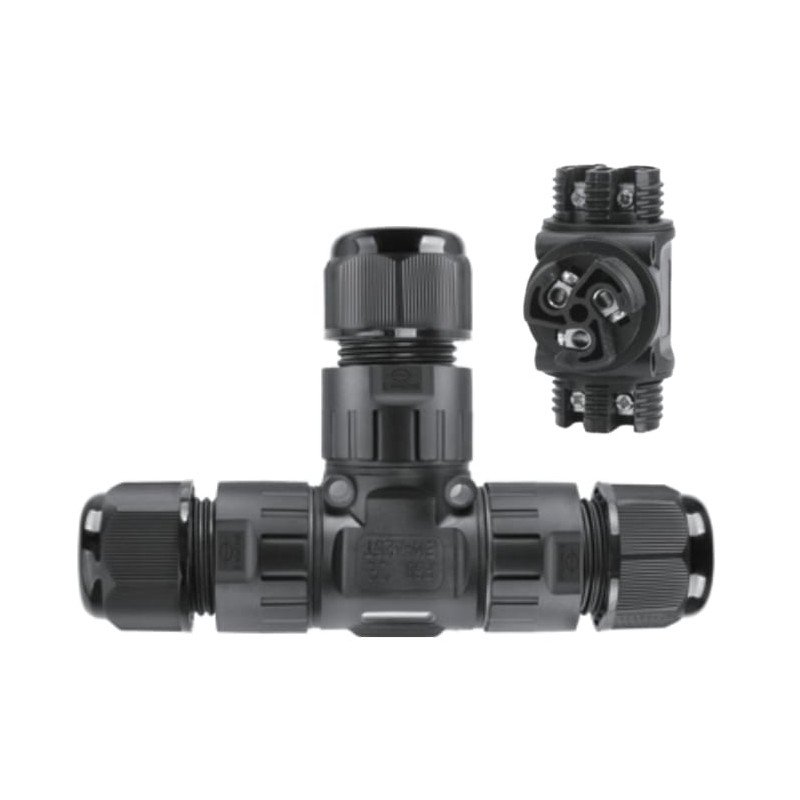

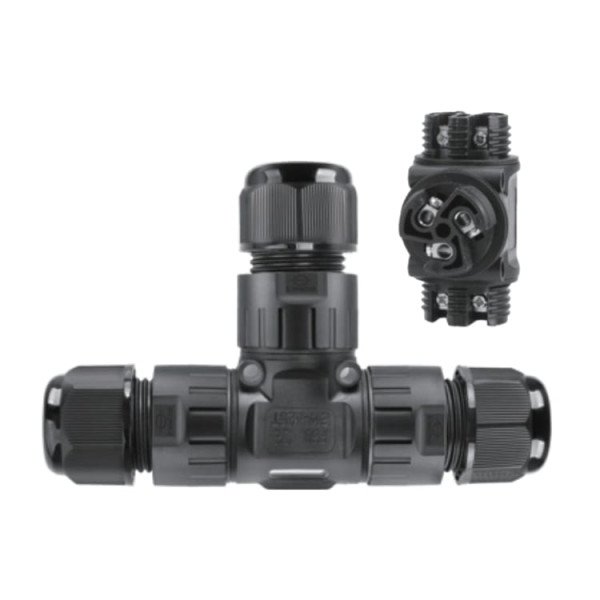

EW-M25T 3-WAY IP68 WATERPROOF CONNECTOR 3-PIN T TYPE

       PRODUCT SPECIFICATIONS:

         EW-M25T 3-WAY IP68 WATERPROOF CONNECTOR 3-PIN T TYPE

• Number of Poles: 3Pins
• Wiring Type: Screw
• Voltage: 450V
• Electric Current: 41A (3Pins)
• Wire Section: 0.5-4mm² (3Pins)
• Outer Cable Diameter: 5-9mm, 9-12mm, 10-14mm

• Plastic Material: PA66
• Contact Material: Copper Alloy
• Temperature Range: -40°C ~ +105°C
• IP Level: IP68
• PA Nylon Raw Material, Waterproof Flame Retardant, Temperature Pressure Resistance
• Size: Ø30.4mmx81mmx126mm
• It is Widely Used in Various Electrical Circuits or Plays the Role of Connecting or Disconnecting Circuits
• It can protect electronic components that are powered on at a water depth of 4 meters. Connect 0.5-4.0mm² solid, stranded, and fine-stranded conductors. Screw Wiring
