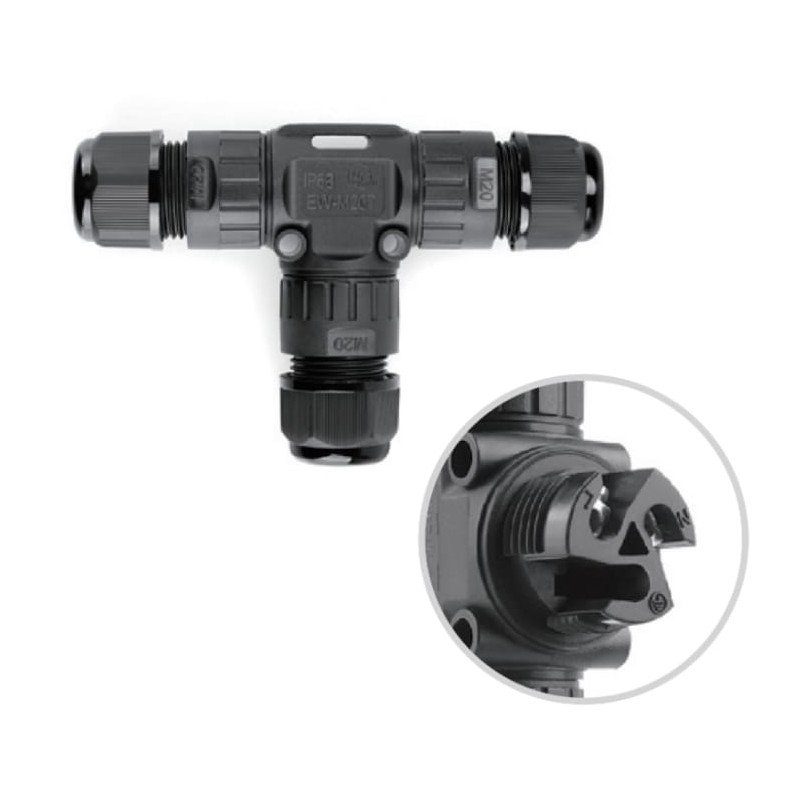

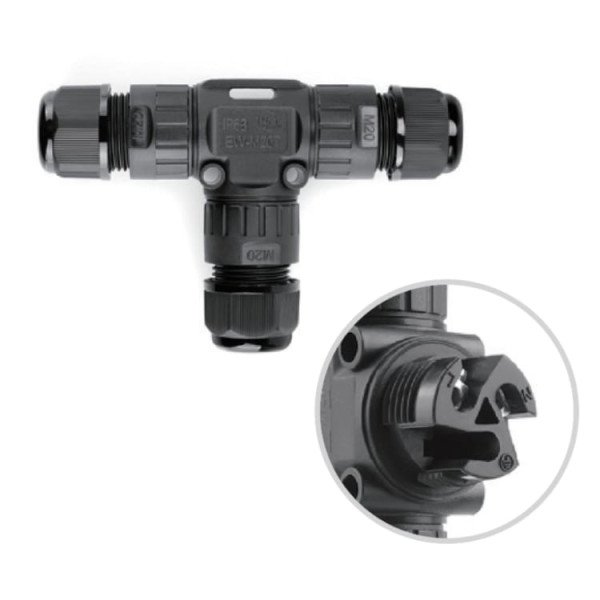

EW-M20T 3-WAY IP68 WATERPROOF CONNECTOR 3-PIN T TYPE

       PRODUCT SPECIFICATIONS:

         EW-M20T 3-WAY IP68 WATERPROOF CONNECTOR 3-PIN T TYPE

• Number of Poles: 3Pins
• Wiring Type: Screw
• Voltage: 400V
• Electric Current: 24A (3Pins)
• Wire Section: 0.5-1.5mm² (3Pins)
• Outer Cable Diameter: 5-9mm, 9-12mm

• Plastic Material: PA66
• Contact Material: Copper Alloy
• Temperature Range: -40°C ~ +105°C
• IP Level: IP68
• PA Nylon Raw Material, Waterproof Flame Retardant, Temperature Pressure Resistance
• Size: Ø24.2mmx68mmx104mm
• It is Widely Used in Various Electrical Circuits or Plays the Role of Connecting or Disconnecting Circuits
• M20T is a high-quality screw waterproof connector with a T-type design. It has a rated voltage of 400V, rated current of 24A, and supports wire sections of 0.5-1.5mm². It’s perfect for various applications where a secure and waterproof connection is needed.
